Product NI20-K40SR-AN6X
Inductive Sensor
Order number: 16226- 2 cable entries (axial, radial)

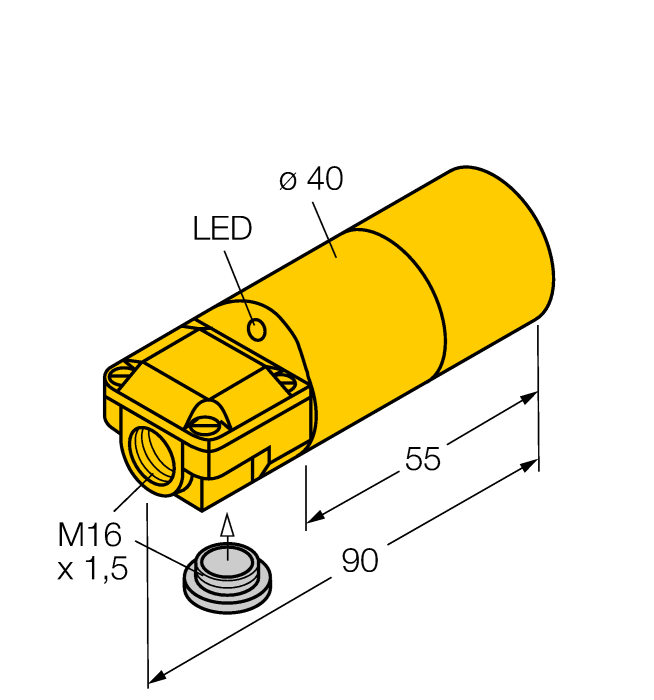

- Smooth barrel, Ø 40 mm
- Plastic, ABS
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- Terminal chamber
General data
| EAN | 4047101078800 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 184 g |
Technical Data
| Design | Smooth barrel |
| Operating voltage | 10…30 VDC |
| Electrical connection | Terminal chamber |
| Housing material | Plastic, ABS, Yellow |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
Connectivity accessories
|
LE550DC1 W/30 | 3095384 |
|
BSS-08
Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene |
6901322 |
|
RSC4.4T-15/TXG | 6634164 |
|
TI-BL20-E-EN-S-6
BL ident interface set |
7030632 |
