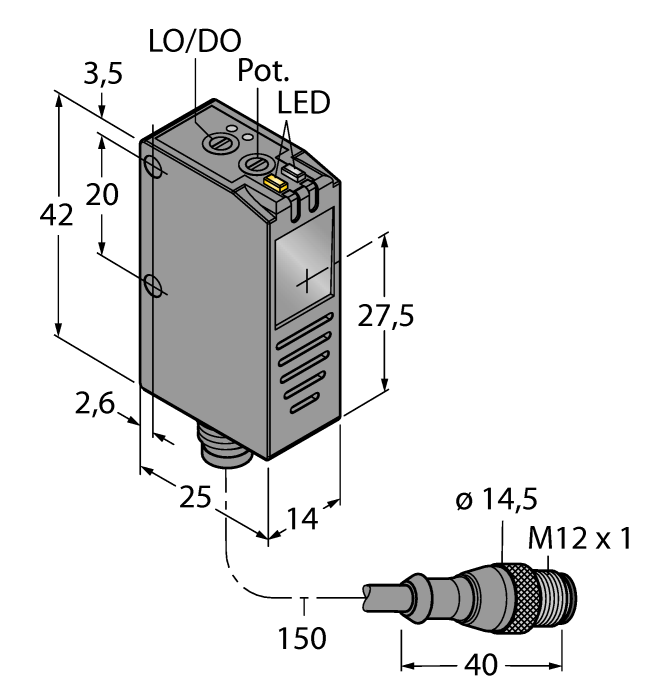

Product Q26NXLPQ5
Photoelectric Sensor
Retroreflective Sensor with Polarizing Filter
For Clear Object Detection
Order number: 3017132Alternative order number : 17132
- Cable with male end M12 × 1, 4-pin
- Protection class IP67
- Light or dark operation, adjustable
- Sensitivity adjusted via potentiometer
- Coaxial optics, reduced blind zone
- Operating voltage: 10…30 VDC
- NPN switching output
- Switching output for insufficient excess gain
General data
| EAN | 662488171322 |
| eCl@ss-Code (V5.1.4): | 27270902 -/- Retroreflective sensor |
| Customs tariff number | 85365019000 |
| Country of origin | HU |
| Weight | 1 g |
Technical Data
| Design | Rectangular |
| Operating voltage | 12…30 VDC |
| Output function | 2 x NO contact, NPN |
| Electrical connection | Cable with connector, M12 × 1 |
| Cable length | 0.150 m |
| Housing material | Plastic, Thermoplastic material, Black |
| Ambient temperature | -10…+55 °C |
| Protection class | IP67 |
Functional accessories
|
WLS28-2CW285XQ | 3087795 |
|
PT60R-2004-U1-DA91 | 6837623 |
|
WKC4.5T-P7X3.1-8/TXO3700 | 6631988 |
