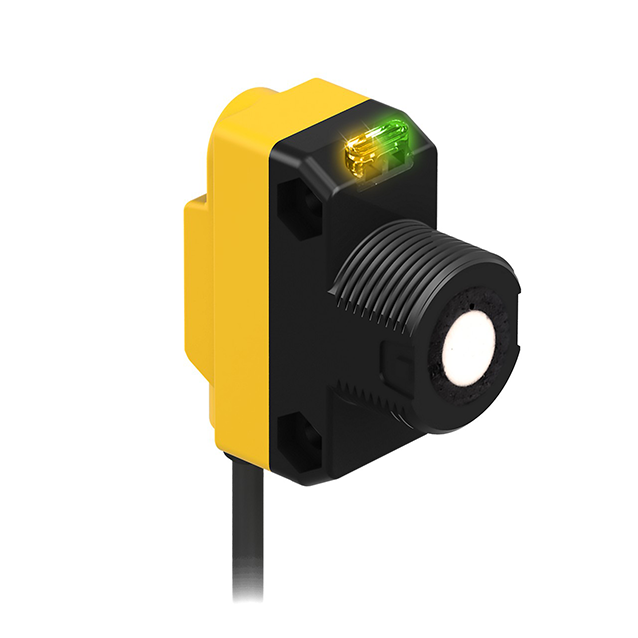

Product QS18UPAQ
Ultrasonic Sensor
diffuse mode sensor
With Switching Output
Order number: 3073159Alternative order number : 73159
- Operating voltage 12…30 VDC
- Compact design
- Pigtail with male 8 mm
- Switching range adjustable via teach-in
- Adjustable to retroreflective mode
- Blind zone: 5 cm
- Range: 50 cm
General data
| EAN | 662488731595 |
| eCl@ss-Code (V5.1.4): | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 69 g |
Technical Data
| Cable length | 0.150 m |

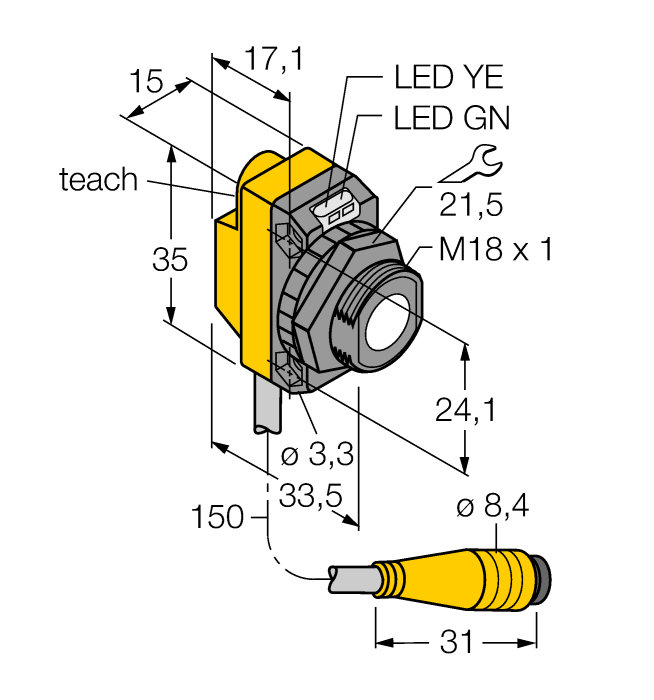

| Construction size | 33.5 x 15 x 35 mm |
| Housing material | Plastic, ABS |
| Ambient temperature | -20…+60 °C |
| Protection class | IP67 |
