Product WI70-M18-LIU5
Inductive Sensor
With Analog Output

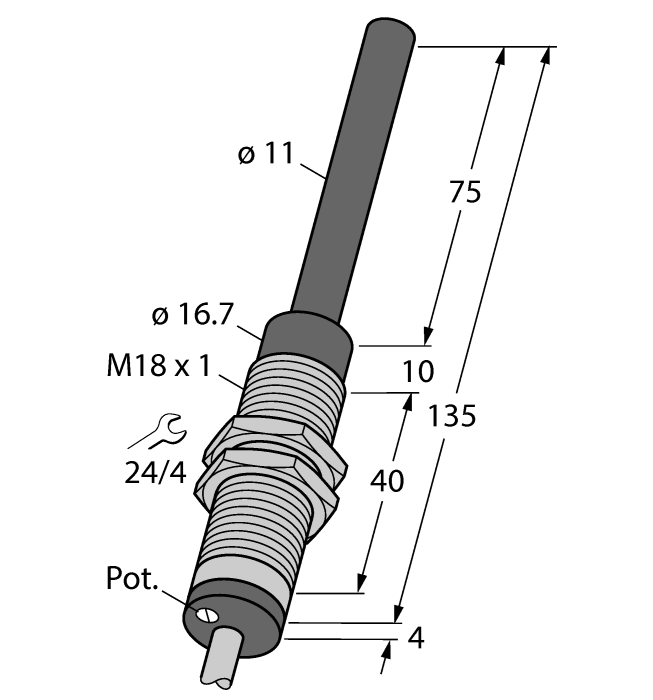

Order number: 1536600- Threaded barrel, M18 x 1
- Chrome-plated brass
- Actuated via short-circuiting ring, blind hole or the like
- 4‐wire, 15…30 VDC
- Analog output
- 0…10 V and 4…20 mA
- Cable connection
General data
| EAN | 4047101072761 |
| eCl@ss-Code (V5.1.4): | 27270802 -/- Indcutive distance sensor |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 150 g |
Technical Data
| Cable length | 2.0 m |
| Cable jacket | Gray |
