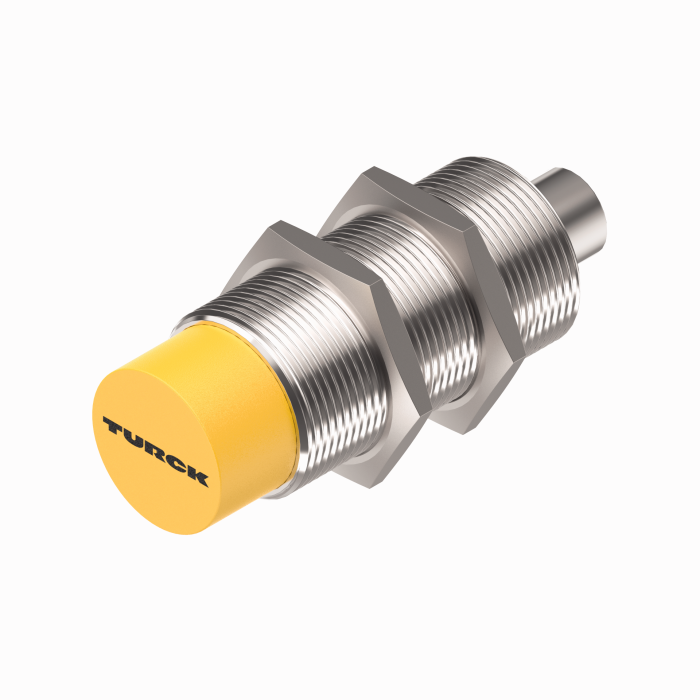

Product NICS-EM30-IOL-HK1141
Inductive coupler
Secondary Side

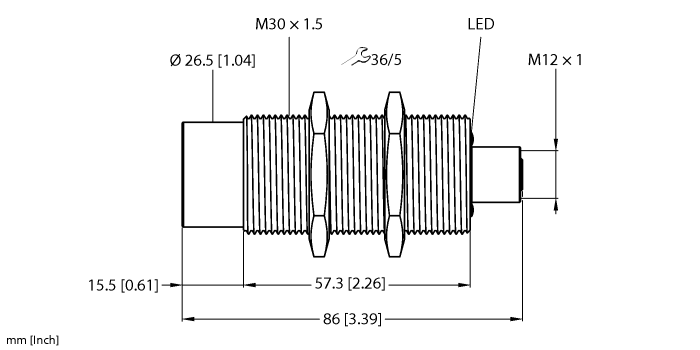

Order number: 100018259- Threaded barrel, M30 × 1.5
- Stainless steel, 1.4404
- IO-Link COM2 (38.4 kbps)
- IO-Link COM3 (230.4 kbps)
- DC 4-wire, 24 VDC
- 2 × PNP/NPN inputs or 1 × PNP/NPN output
- M12 × 1 female connector
General data
| EAN | 4047101523959 |
| eCl@ss-Code (V5.1.4): | 27069090 -/- Cable, line (other) |
| Customs tariff number | 85176200000 |
| Country of origin | DE |
| Weight | 228 g |
