Product FW-ERSPM0514-PK-S-0813

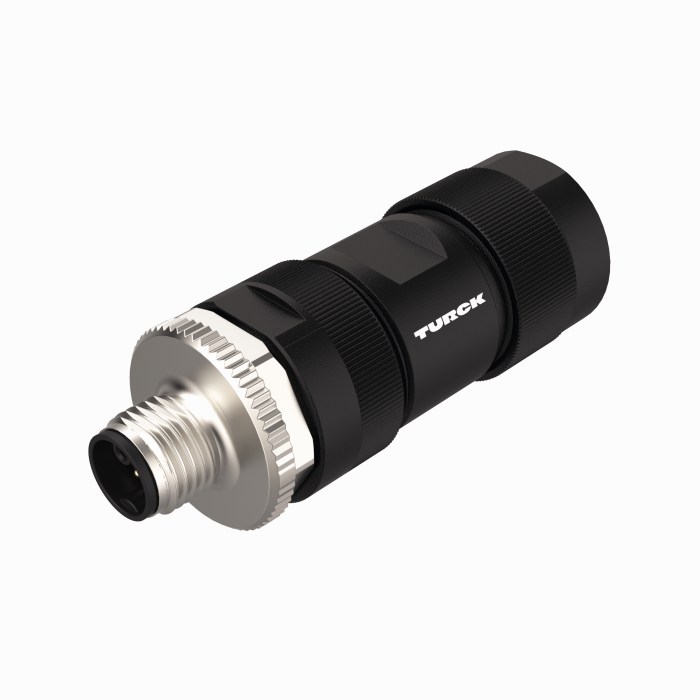

Field-Wireable Connector
M12 Power
Male Connector M12 × 1, Straight
Order number: 100008138- K-coding
- Metal retaining screw
- Screw-clamp terminal
- 5-pin (4+PE)
- Cable feedthrough: 8.0…13.0 mm
- Terminal capacity:
- Max. 1.5 mm² or 16 AWG (with cable end sleeve)
- Max. 2.5 mm² or 14 AWG (without cable end sleeve)
General data
| EAN | 4047101511307 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 45 g |
Technical Data
| Device type | Field-wireable connector |
| Connector A | Male, M12 × 1, Straight, K-coded |
Data Sheets
| German | 88 KB |
| English | 88 KB |
| French | 89 KB |
| Spanish | 88 KB |
| Czech | 89 KB |
| Dutch | 88 KB |
| Romanian | 88 KB |
| Russian | 151 KB |
| Polish | 89 KB |
| Chinese | 103 KB |
| Turkish | 89 KB |
Approval/Declaration
| UL Approval | 400 KB |
| CE Declaration of Conformity | 120 KB |
| RoHS and REACH Manufacturer's Declaration | 280 KB |
