Product QS18EK6CV45Q
Photoelectric Sensor
Convergent Mode Sensor
Order number: 3802814- Cable with male end, PVC, M8 × 1, 4-pin, 150 mm
- Protection class IP67
- LED all-round visible
- Sensitivity adjusted via teach button
- Operating voltage: 10…30 VDC
- 1 × PNP/NPN switching output with IO-Link communication
- 1 × PNP/NPN switching output
- Transmission of process value and parametrization via IO-link
General data
| EAN | 662488019761 |
| eCl@ss-Code (V5.1.4): | 27270903 -/- Diffuse mode sensor, energy-efficient |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 54.43 g |
Technical Data
| Design | Rectangular |

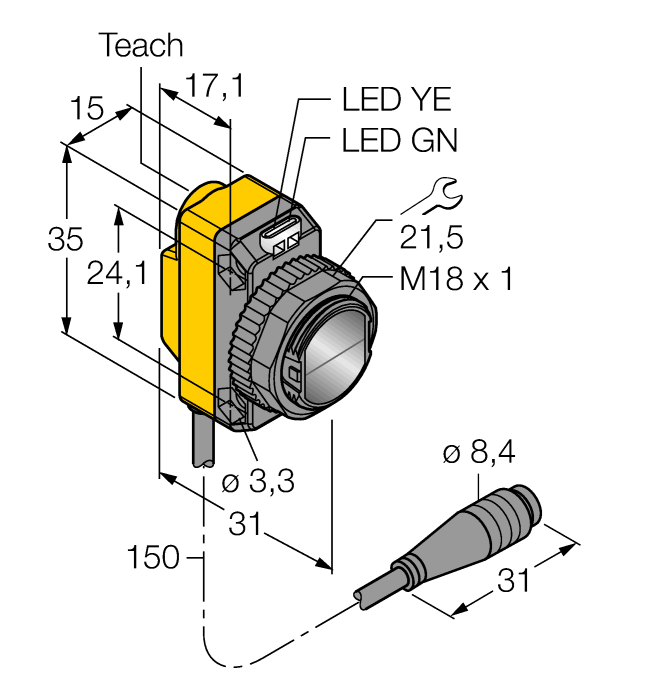

| Construction size | 31 x 15 x 35 mm, QS18 |
| Housing material | Plastic, ABS |
| Ambient temperature | -20…+70 °C |
| Protection class | IP67 |
Connectivity accessories
|
PT40R-1001-IOL-H1141 | 100030993 |
|
WKCV 5732-15M/CS15915 | UX04214 |
|
IVU2PRGR06 | 3090722 |
|
WSSD-RJ45S-4416-2M | 100023330 |
|
T18RP6R | 3044381 |
