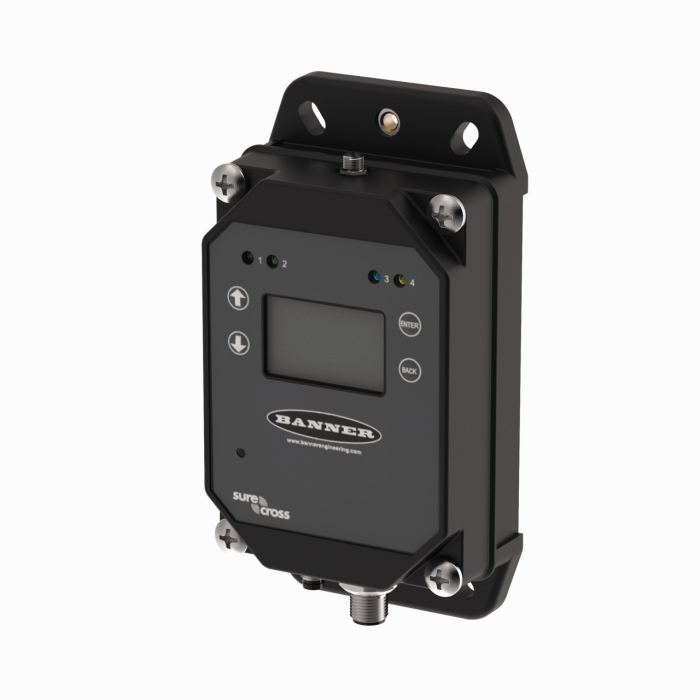

Product DXM1200-B1R3
Network Controller
With Integrated 2.4-GHz DX80 Gateway
Modbus RTU and Ethernet Interface
Order number: 3805550Alternative order number : 805550
- Integrated signal strength indicator
- Configuration via DIP switch and software
- LCD display and configurable LEDs
- Protection class IP67
- Optional DX80 gateway
- Logic functions, supports ScriptBasic
- Email and cloud function, timing and data logger
- Alternative register assignment
- Operating voltage: 12…30 VDC or battery operation
- Inputs: none
- Outputs: none
- Interfaces: RS232, RS485, Ethernet, USB
- Protocols: Modbus RTU, EtherNet/IP, Modbus TCP, PROFINET, CAN
General data
| EAN | 662488041656 |
| eCl@ss-Code (V5.1.4): | 27250312 -/- Communication interface, active |
| Customs tariff number | 85176200000 |
| Country of origin | US |
| Weight | 508.02 g |
Technical Data
| Design | Rectangular |
| Housing material | Plastic, PC, Black |
| Ambient temperature | -20…+60 °C |
| Protection class | IP67 |
