Product YB2-FSM5-2FKM5.4-P7X3
2-Way Splitter

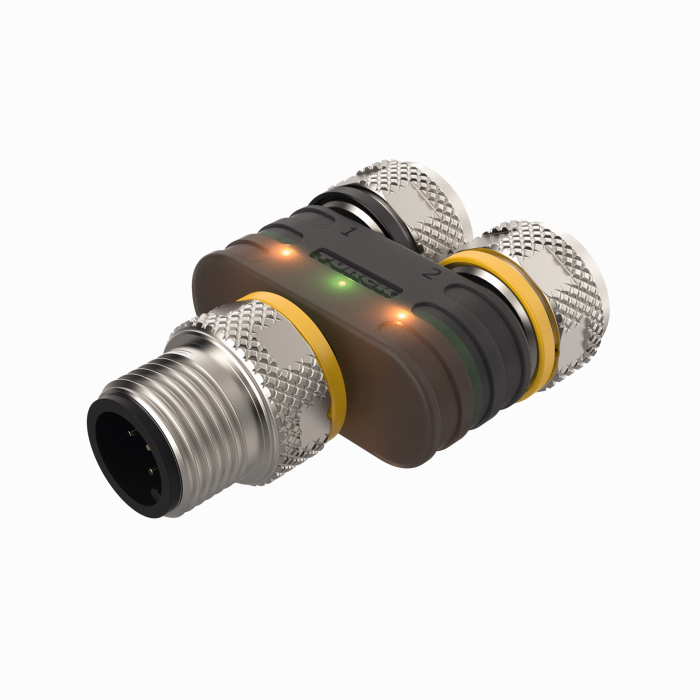

Y-Splitter with LED, M12 × 1 Male Connector — 2 × M12 × 1 Female Connectors
Order number: 6930547- M12 male connector, 5-pin
- M12 female connector, 4-pin
- 1 x LED green, status
- 2 x LED yellow, function
- RoHS-compliant
- Protection class IP67
General data
| EAN | 4047101294903 |
| eCl@ss-Code (V5.1.4): | 27250316 -/- Passive sensor/actuator junction |
| Customs tariff number | 85366990990 |
| Country of origin | CN |
| Weight | 32 g |
Technical Data
| Ambient temperature | -30…+80 °C |
