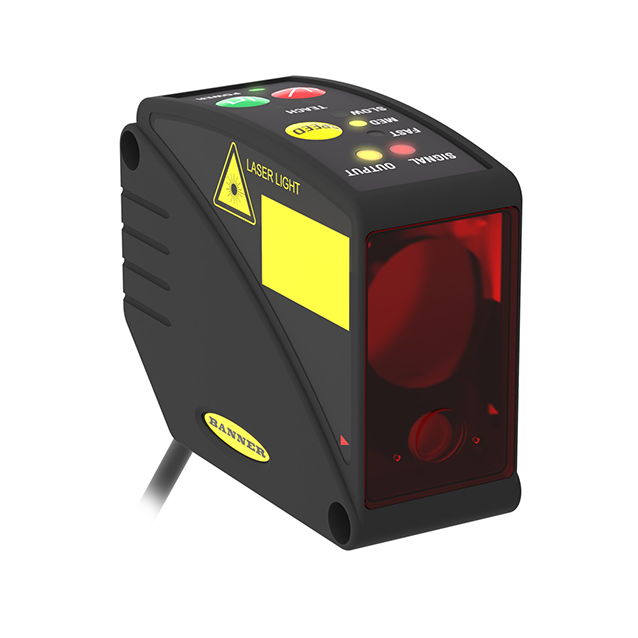

Product LT3NI
Photoelectric Sensor
Diffuse-Mode Laser Sensor (Runtime Measurement)
With Switching and Analog Output
Order number: 3065511Alternative order number : 65511
- Cable, 2 m, 7-wire
- Indication of signal intensity
- Protection class IP67
- Measuring range (distance to white object): 5 m
- 3 response times adjustable for switching output
- Operating voltage: 12…24 VDC
- Hysteresis and measuring range independently adjustable
- Edge of the analog output invertible
General data
| EAN | 662488655112 |
| eCl@ss-Code (V5.1.4): | 27270801 -/- Optical distance sensor |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 300 g |
