Product BI20R-Q14-LU
Inductive Sensor
With Analog Output

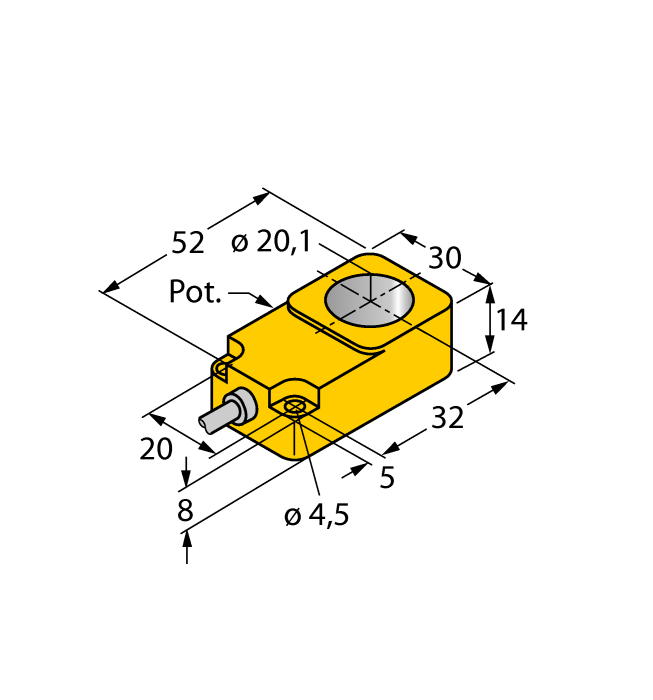

Order number: 1535546- Rectangular, height 14 mm
- Plastic, PBT‐GF30‐V0
- Sensitivity adjusted via potentiometer
- Thickness measurement (e.g. screws, rivets, rods)
- Path measurement with conical actuator: Measuring range freely adjustable via cone length
- 3‐wire, 15…30 VDC
- Analog output
- 0…10 V
- Cable connection
General data
| EAN | 4047101072273 |
| eCl@ss-Code (V5.1.4): | 27270802 -/- Indcutive distance sensor |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 111 g |
Technical Data
| Electrical connection | Cable |
| Protection class | IP67 |
Mounting accessories
|
QS18VN6LV W/10-12499 | 3012499 |
|
WKC4T-P7X2-1.5-RSC4T/TXO | 6628956 |
|
RKC5T-2/TXL1001 | 6630227 |
|
PDP-TRA
PROFIBUS-DP terminating resistor, 1 x M12 male, B-coded, 5-pin, active, feeding via 1 x 7/8” male, 5-pin |
6825346 |
