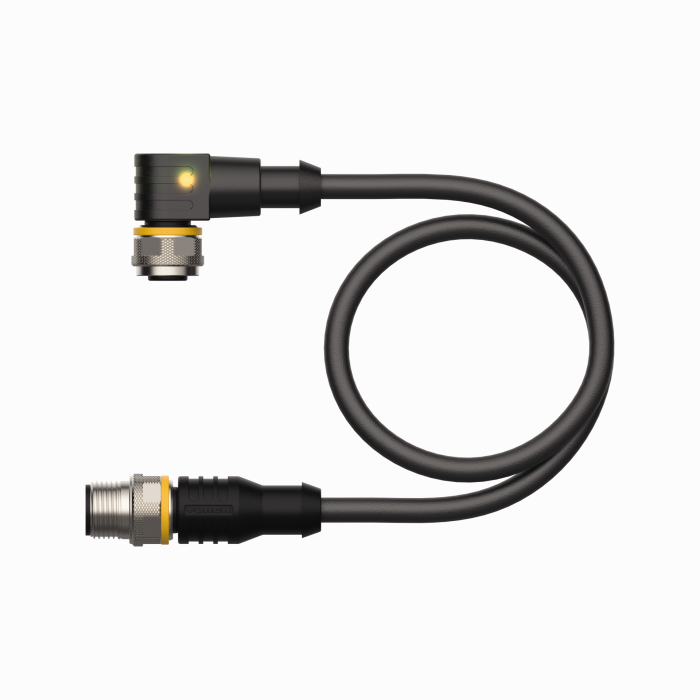

Product WKC4T-P7X2-4-RSC4T/TXL

Actuator and Sensor Cable, PUR

Extension Cable

Order number: 6625816

Female M12, angled, 3-pin
With 2-color LED (PNP, yellow, green)

Male M12, straight, 3-pin

Jacket material: PUR
Jacket color: black
Suitable for drag chain use
Resistant to chemicals, UV radiation and oils
Flame retardant (FT2 acc. to UL 1581, IEC 60332-2-2)
Resistant to welding sparks
Free from halogen, silicone, PVC and LABS
Particularly resistant to abrasion
Protection class: IP67, IP69K

Cable length: 4.0 m

Hide All Open All

Specifications
Download
Accessories

General data

EAN	4047101303391
eCl@ss-Code (V5.1.4):	27250107 -/- Connection cable sensor-actuator
Customs tariff number	85444290900
Country of origin	PL
Weight	131 g

Technical Data

Cable length	4.0 m
Ambient temperature	-25…+80 °C

Data Sheets

German	1276 KB
English	1275 KB
French	1277 KB
Spanish	1275 KB
Czech	1276 KB
Dutch	1275 KB
Romanian	1276 KB
Russian	1451 KB
Polish	1277 KB
Chinese	1389 KB
Turkish	1276 KB

Approval/Declaration

CE Declaration of Conformity	654 KB

CAD File

Stecker 3D-2 (STP)	221 KB

General Catalog

Connectivity	11874 KB

Product Flyer

M12 Power Product Series	1863 KB
Connectivity Preferred Program	799 KB

Product Overview

Connection and Distribution	744 KB
Connection technology type code	390 KB

Mounting accessories

	SLPMP14-1110P128	3084480
	T30UINB W/30	3055985
	SLLR14-1540-S	3809132

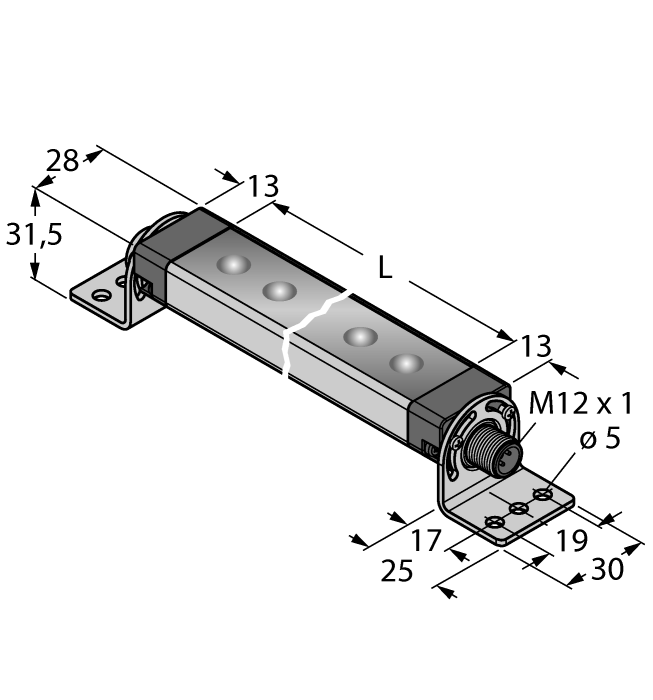

	WLS28-2XW285SPWMQ	3090470

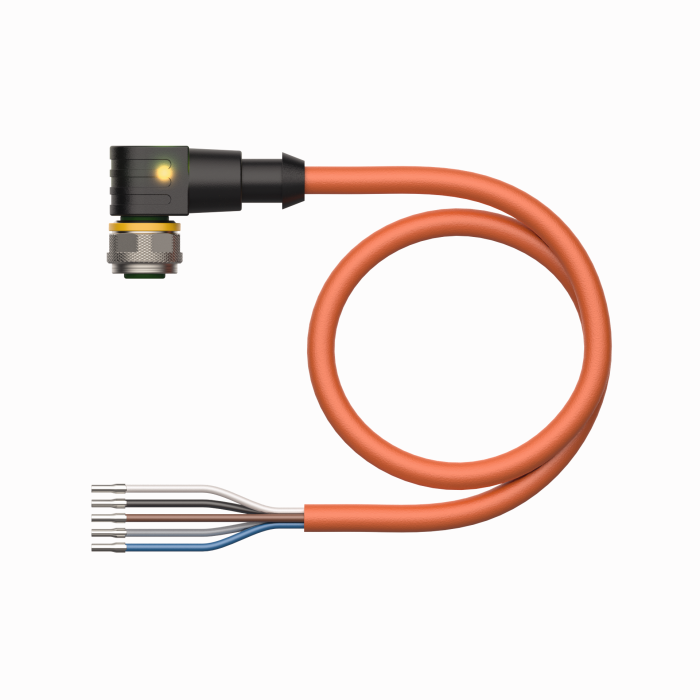

	WKC4.5T-P7X3.1-5/TXO3701	6635719

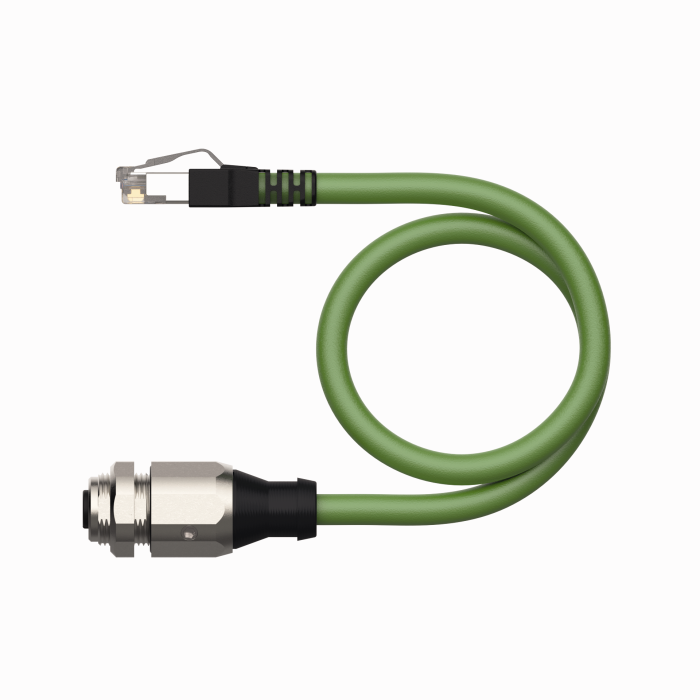

	RJ45S-FKSDD-4422-5M	6636972

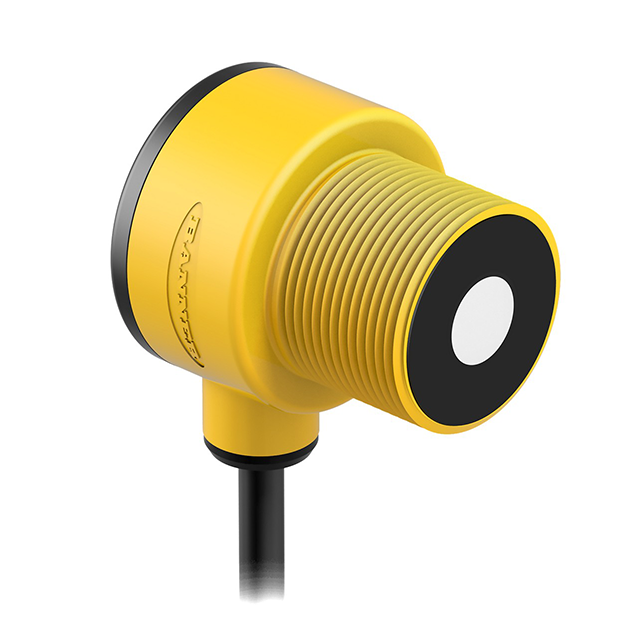

	SM312CVBQDP	3049073

Functional accessories

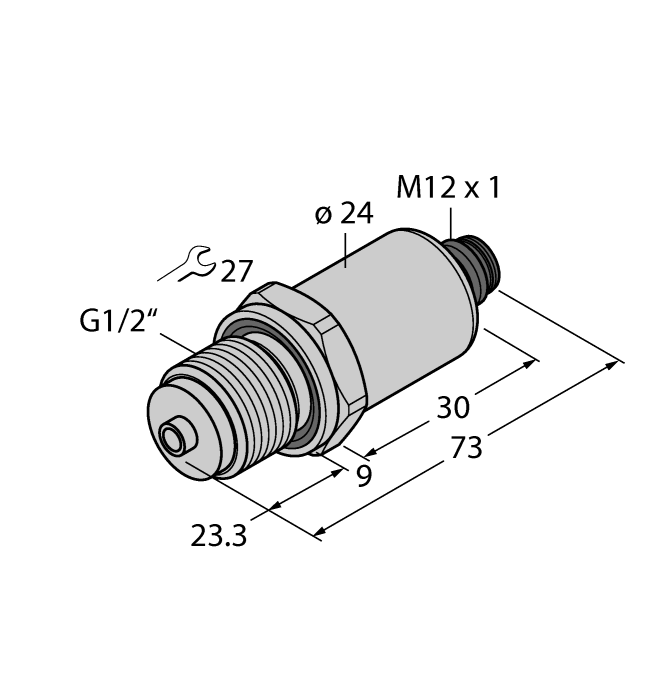

	PT600R-2008-I2-H1141/X	6836672
