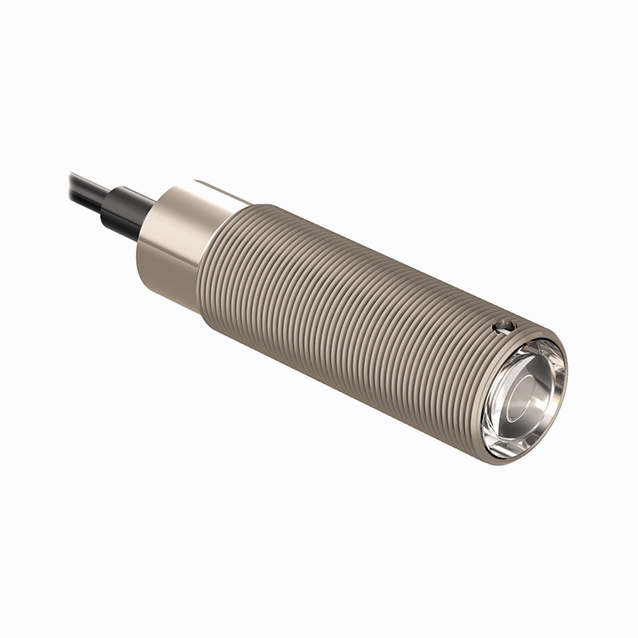

Product SM30SRLBE
Photoelectric Sensor
Opposed Mode Sensor (Receiver)
Order number: 3038788Alternative order number : 38788
- Cable, 2 m
- Protection class IP67
- Ambient temperature: -40…+70 °C
- Modulation frequency B, requires transmitters with the same frequency
- Operating voltage 10…30 VDC
- Bi-modal switching output (NPN or PNP, depending on connection)
General data
| EAN | 662488387884 |
| eCl@ss-Code (V5.1.4): | 27270901 -/- Opposed mode sensor |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 788 g |
Technical Data

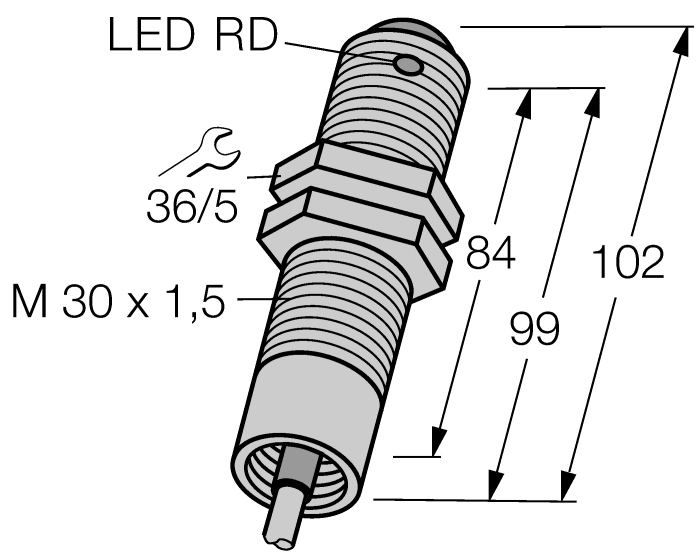

| Design | Tube |
| Operating voltage | 10…30 VDC |
| Output function | Connection programmable, PNP/NPN |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Metal, Stainless steel |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67 |
Mounting accessories
|
REM-99S8C-3C12S12M-H1181 | 100011240 |
|
T183E W/30 | 3033927 |
|

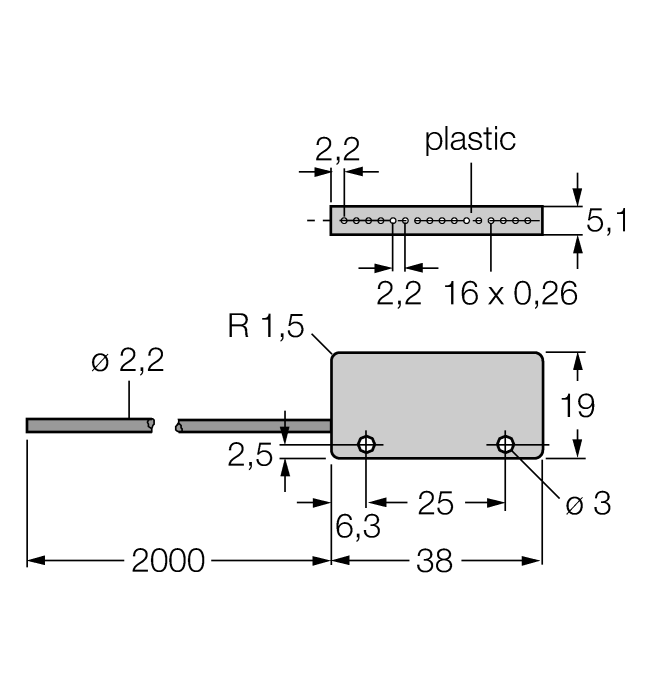

PIRS1X166UMPMAL
Plastic fiber, sensing mode: Opposed mode, rectangular beam, side emission, preassembled wire without end tip, polyethylene jacket, ambient temperatures -30 °C…+70 °C |
3048066 |
Functional accessories
|
Q40AW3LPQ1 | 3033396 |
