Product WKH4.5-5-WSH4.5/TFG
Food & Beverage Hygienic, TPE
Extension Cable

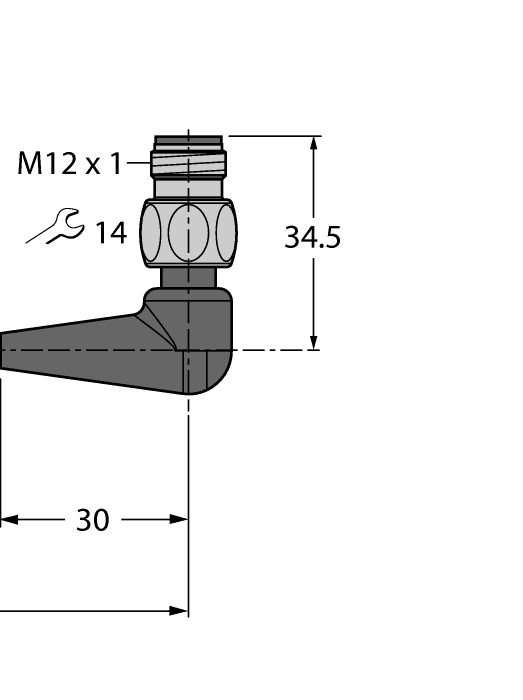

Order number: 6933892- M12 female connector, angled, 5-pin
- Stainless steel coupling nut/screw
- M12 male connector, angled, 5-pin
- Sheath material: TPE-O
- Sheath color: light gray RAL 7035
- Qualified for drag chain use
- Resistant to chemicals an microbes
- Weatherproof
- Resistant to hydrolysis acc. to DIN EN 60068-2-78
- Flexible at low temperatures
- Free from silicone and PVC
- Halogen-free acc. to DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1
- Approvals: Gost, Ecolab, FDA
- RoHS and REACH compliant
- Protection classes IP67, IP69K
- Cable length: 5.0 m
Data Sheets
| German | 415 KB |
| English | 407 KB |
| French | 408 KB |
| Spanish | 327 KB |
| Czech | 409 KB |
| Dutch | 407 KB |
| Romanian | 407 KB |
| Russian | 395 KB |
| Polish | 410 KB |
| Chinese | 394 KB |
| Turkish | 410 KB |
Approval/Declaration
General Catalog
Product Flyer
| Connectivity for the food industry | 3310 KB |
| M12 Power Product Series | 1863 KB |
Product Overview
Mounting accessories
|
PT40R-1004-U1-H1143 | 6836476 |
|
PS001V-505-LI2UPN8X-H1141 | 6832853 |
