Product WKC4.4T-P7X3.1-5-RSC4.4T/TXL

Actuator and Sensor Cable, PUR

Extension Cable

Order number: 6626045

Female M12, angled, 4-pin
With 3-color LED (PNP, red, yellow, green)

Male M12, straight, 4-pin

Jacket material: PUR
Jacket color: black
Suitable for drag chain use
Resistant to chemicals, UV radiation and oils
Flame retardant (FT2 acc. to UL 1581, IEC 60332-2-2)
Resistant to welding sparks
Free from halogen, silicone, PVC and LABS
Particularly resistant to abrasion
Protection class: IP67, IP69K

Cable length: 5.0 m

Hide All Open All

Specifications
Download
Accessories

General data

EAN	4047101288568
eCl@ss-Code (V5.1.4):	27250107 -/- Connection cable sensor-actuator
Customs tariff number	85444290900
Country of origin	PL
Weight	172 g

Technical Data

Cable length	5.0 m
Ambient temperature	-25…+80 °C

Data Sheets

German	1043 KB
English	1043 KB
French	1043 KB
Spanish	1042 KB
Czech	1043 KB
Dutch	1043 KB
Romanian	1044 KB
Russian	1049 KB
Polish	1044 KB
Turkish	1044 KB

Approval/Declaration

UL Approval	335 KB

General Catalog

Connectivity	11874 KB

Product Flyer

M12 Power Product Series	1863 KB
Connectivity Preferred Program	799 KB

Product Overview

Connection and Distribution	744 KB
Connection technology type code	390 KB

Connectivity accessories

	WKC4.4T-5/TEG	6628391
	WLS28-2XW850XPBQ	3087999

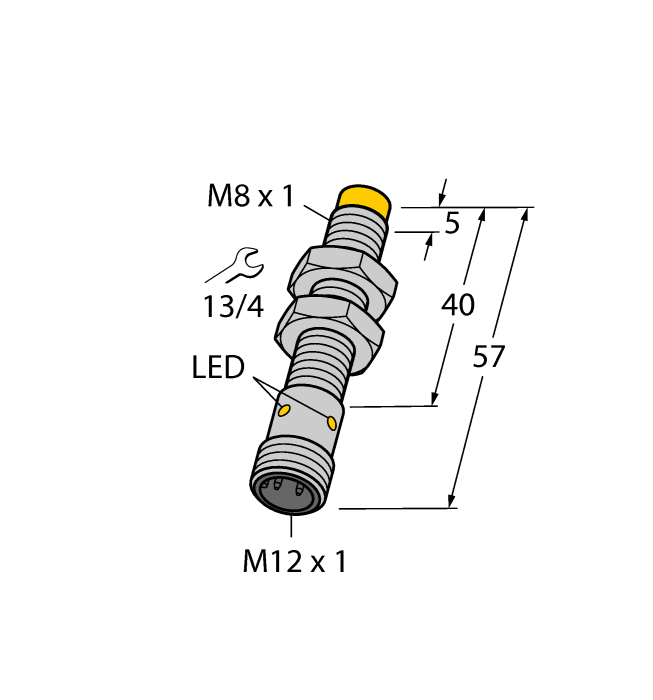

	NI4U-EG08-AN6X-H1341 Cylindrical, threaded barrel, 8 mm, stainless steel	4600650

Functional accessories

	PKG4M-10/TEG	6628554

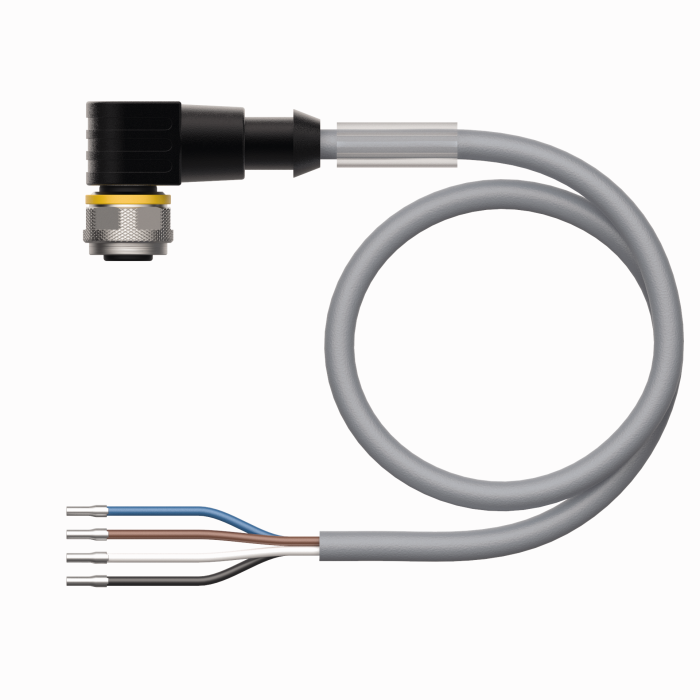

	RKC4T-P7X2-10-RSC4T/TEL	6625413
	RKP56PLB-10-RSP56PLB/TXG	100003349
	RKC4.4T-25-RSC4.4T/TXG	6636172
	PS001D-502T-2UPN8X-H1141	6834112
