Product WLB92X1100PB
LED Linear Light
In the Metal Housing
Order number: 3093285Alternative order number : 93285
- Light beam: 1100 mm
- Operating voltage: 24 VDC (±10%)
- Protection class: IP50
- Color: White
- Cable, 2 m
- Built-in ON/OFF switch
- Integrated rotary switch for continuous dimming of the light output (0% - 100%)
General data
| EAN | 662488932855 |
| eCl@ss-Code (V5.1.4): | 27119002 -/- Work light |
| Customs tariff number | 94054239900 |
| Country of origin | MX |
| Weight | 4633 g |
Technical Data
| Function | Linear light |
| Design | Rectangular |

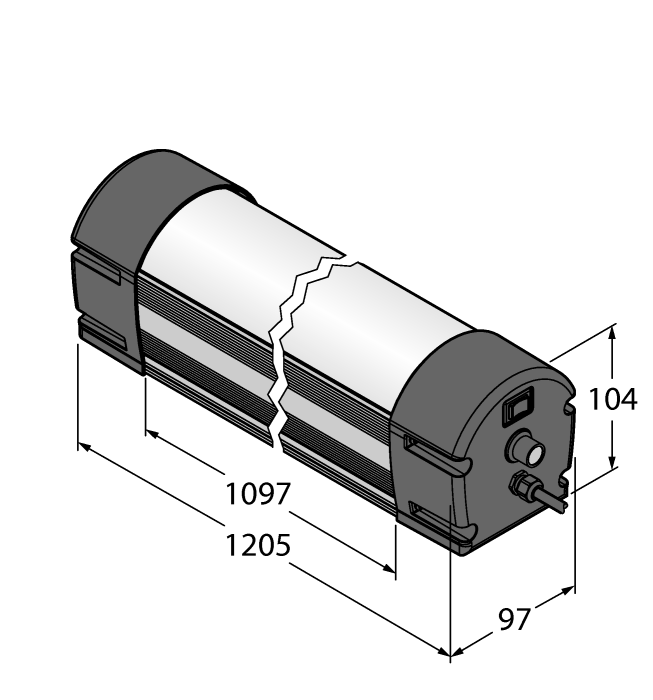

| Construction size | 1220 x 97 x 104 mm, WLB92 |
| Light type | White |
| Operating voltage | 21.6…26.4 VDC |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Metal, AL, Anodized |
| Ambient temperature | -40…+70 °C |
| Protection class | IP40 |
Mounting accessories
|
PT40R-1004-U1-H1143 | 6836476 |
Connectivity accessories
|
TI-BL20-E-EN-S-6
BL ident interface set |
7030632 |
|
RSC4.4T-15/TXG | 6634164 |
