Product DXM100-B2R4
Network Controller
With Integrated 2.4-GHz Data Radio
Modbus RTU and Ethernet Interface
Order number: 3803303- Integrated signal strength indicator
- Configuration via DIP switch and software

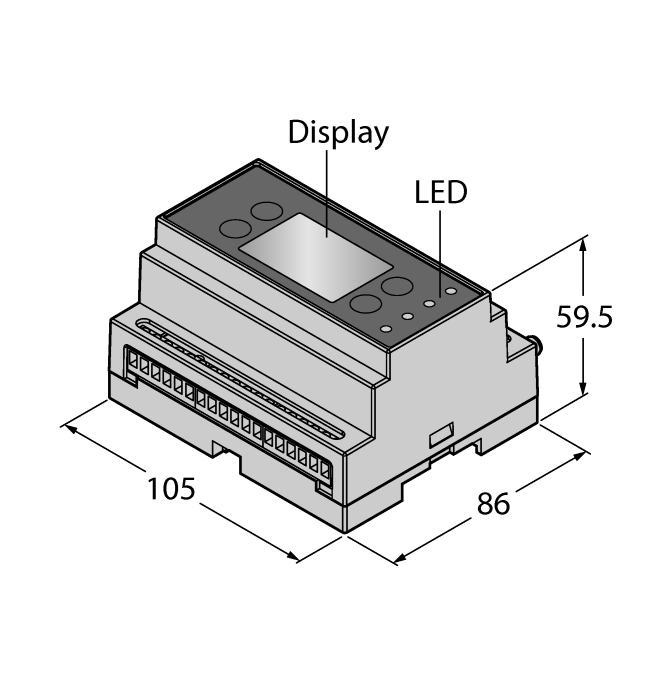

- LCD display and configurable LEDs
- DX80 Data radio functionalities
- Logic functions, supports ScriptBasic
- Email and cloud function, timing and data logger
- Alternative registry assignments
- Operating voltage: 12…30 VDC or battery operation
- Inputs: 4 × configurable (analog/discrete)
- Outputs: 4 × NMOS, 2 × 0…10 V, 2 × switch power
- Interfaces: RS232, RS485, Ethernet, USB
- Protocols: Modbus RTU, EtherNet/IP, Modbus TCP, PROFINET, CAN
General data
| EAN | None |
| eCl@ss-Code (V5.1.4): | 27250312 -/- Communication interface, active |
| Customs tariff number | 85176200 |
| Country of origin | US |
| Weight | 491 g |
Technical Data
| Function | Tree topology |
| Design | Rectangular |
| Range | 3200000 mm |
| Operating voltage | 12…30 VDC |
| Output function | Programmable, PNP/NPN, analog output |
| Communication protocol | RS485, Modbus RTU, EtherNet/IP, Modbus TCP, PROFINET |
| Electrical connection | Screw terminals |
| Housing material | Plastic, PC, Grey |
| Ambient temperature | -20…+60 °C |
| Protection class | IP20 |
Mounting accessories
|
PT40R-1004-U1-H1143 | 6836476 |
|
VS2KRN5VQ | 3063101 |
|
QS30AF600 | 3011977 |
|
PS001V-505-LI2UPN8X-H1141 | 6832853 |
Connectivity accessories
|
WKC4.4T-P7X3.1-2.5/TXO3700 | 6633029 |
|
EC-FKFDE4.5-0.5/16 | 6934557 |
