Product QM42VN6FPQ

Zoom

Photoelectric Sensor

Photoelectric Sensor for Plastic Fibers

Order number: 3045788

Male M12 × 1, 4-pin
Metal housing, ZN, black
Protection class IP67

Sensitivity adjusted via potentiometer

Operating voltage 10…30 VDC
NPN switching output
Light/dark operation

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488457884
eCl@ss-Code (V5.1.4):	27270905 -/- Fiber optic sensor
Customs tariff number	85365019000
Country of origin	US
Weight	100 g

Technical Data

Function	Fiber optic sensor
Operating mode	Plastic fiber
Design	Rectangular

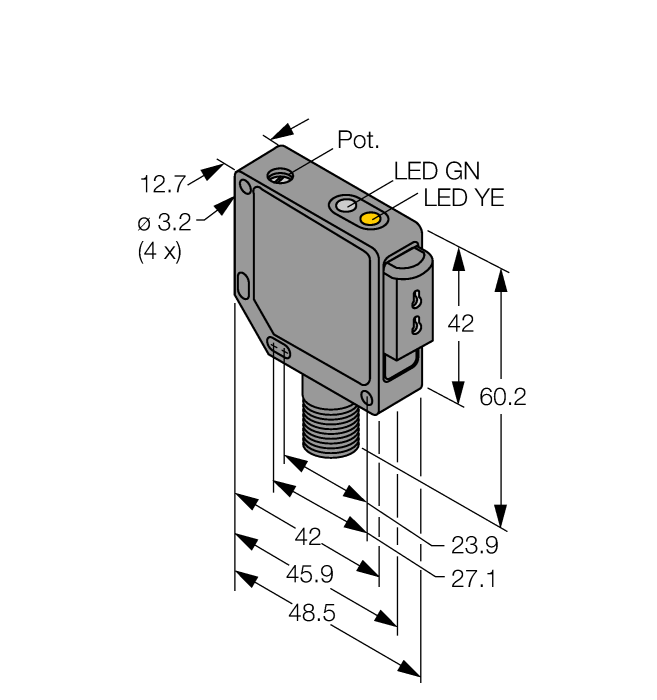

Construction size	48.5 x 12.7 x 60.2 mm, QM42
Light type	Red
Operating voltage	10…30 VDC
Output function	NO/NC, NPN
Electrical connection	Connector, M12 × 1
Housing material	Metal, ZN, Black-finished
Ambient temperature	-20…+70 °C
Protection class	IP67

Data Sheets

German	351 KB
English	655 KB
French	656 KB
Spanish	504 KB
Czech	655 KB
Dutch	656 KB
Romanian	655 KB
Russian	662 KB
Polish	657 KB
Turkish	656 KB

Product Flyer

Fiber-Optic Technology — Fiber Optics and Sensors	3927 KB

Mounting accessories

	PT40R-1004-U1-H1143	6836476
	VS2KRN5VQ	3063101
	QS30AF600	3011977
	PS001V-505-LI2UPN8X-H1141	6832853

Connectivity accessories

	TI-BL20-E-EN-S-6 BL ident interface set	7030632
	RSC4.4T-15/TXG	6634164
