Product QMT42VP6DXQ

Zoom

Photoelectric Sensor

Diffuse Mode Sensor

Order number: 3056897

Alternative order number : 56897

Male M12 × 1, 4-pin
Metal housing, ZN, black
Protection class IP67

Sensitivity adjusted via potentiometer

Operating voltage 10…30 VDC
PNP switching output
Light/dark operation

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488568979
eCl@ss-Code (V5.1.4):	27270903 -/- Diffuse mode sensor, energy-efficient
Customs tariff number	85365019000
Country of origin	US
Weight	136 g

Technical Data

Function	Proximity switch
Operating mode	Diffuse
Design	Rectangular

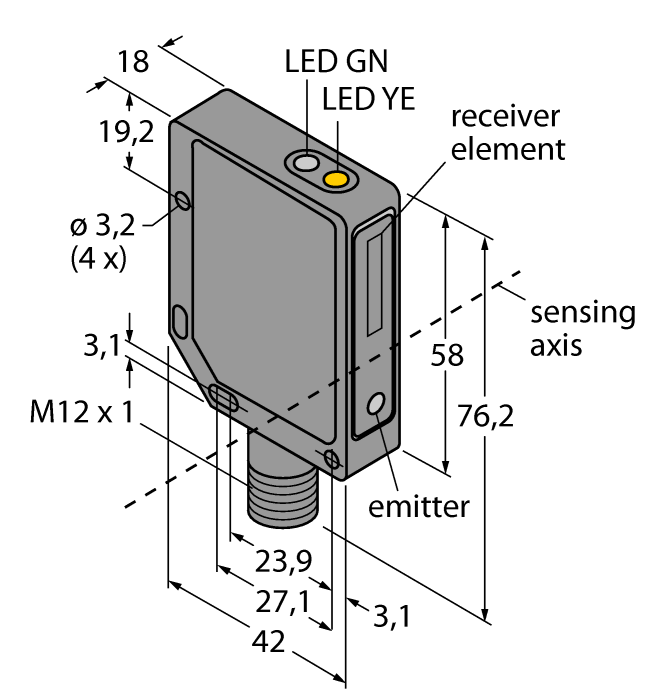

Construction size	42 x 18 x 76.2 mm, QMT42
Range	10…6000 mm
Light type	IR
Operating voltage	10…30 VDC
Output function	NO/NC, PNP
Electrical connection	Connector, M12 × 1
Housing material	Metal, Zinc Alloy Die-Cast, Black-finished
Ambient temperature	-20…+55 °C
Protection class	IP67

Data Sheets

German	670 KB
English	667 KB
French	668 KB
Spanish	667 KB
Czech	668 KB
Dutch	668 KB
Romanian	668 KB
Russian	674 KB
Polish	669 KB
Turkish	668 KB

Mounting accessories

	PT40R-1004-U1-H1143	6836476
	VS2KRN5VQ	3063101
	QS30AF600	3011977
	PS001V-505-LI2UPN8X-H1141	6832853

Connectivity accessories

	TI-BL20-E-EN-S-6 BL ident interface set	7030632
	RSC4.4T-15/TXG	6634164

Functional accessories

	WKH4.4-40/TFG	6934945
	WLC60CW340GFAR	3086884
