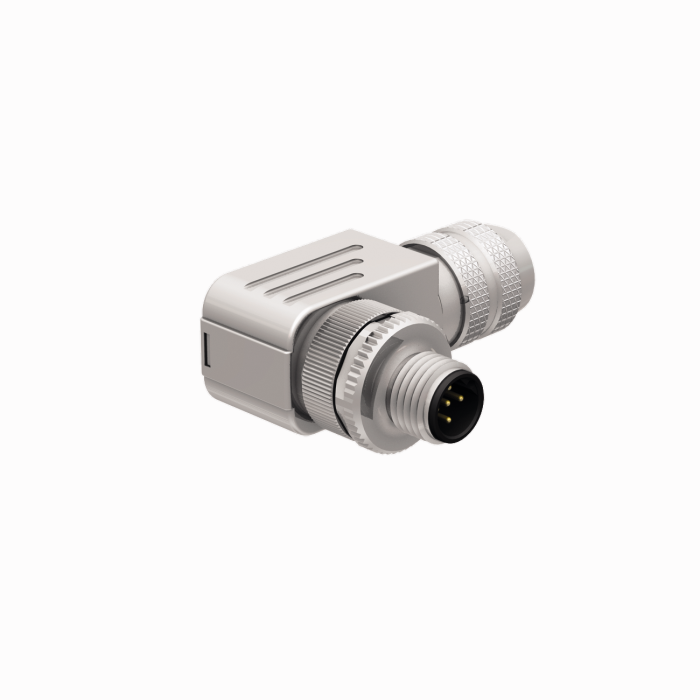

Product BMSWS8251-8.5
Field-Wireable Connector
Male Connector M12 × 1, Angled
Order number: 6904724- For use in PROFIBUS-DP applications
- Up to 12 Mbps
- Shielding via iris spring connection
- B-coding
- Metal housing
- Screw-clamp terminal
- 5-pin
- M18 × 1 metric screw-in thread
- Cable diameter 6.0…8.5 mm
General data
| EAN | 4047101458565 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 69 g |
Technical Data
| Application | Data |
| Connector A | Male, M12 × 1, Angled, B-coded |
| Number of pins | 5 |
| Connector body | Brass, CuZn, nickel-plated, Black |
| Coupling nut/screw | Die-cast Zinc, GD-Zn, Nickel-plated |
| Screw-in thread | M18 × 1 |
| Network protocol | PROFIBUS-DP |
| Voltage | 125 V |
| Current | 4 A |
| Protection class | IP67 |
| Approvals | cULus recognized |
Data Sheets
| German | 358 KB |
| English | 358 KB |
| French | 359 KB |
| Spanish | 359 KB |
| Czech | 359 KB |
| Dutch | 358 KB |
| Romanian | 359 KB |
| Russian | 392 KB |
| Polish | 359 KB |
| Chinese | 426 KB |
| Turkish | 359 KB |
Approval/Declaration
| UL Approval | 400 KB |
| CE Declaration of Conformity | 120 KB |
| RoHS and REACH Manufacturer's Declaration | 280 KB |

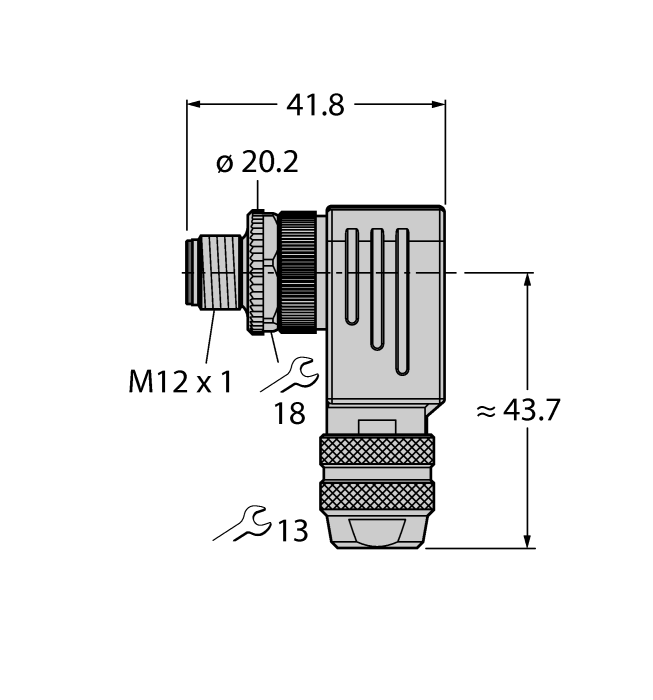

CAD File
