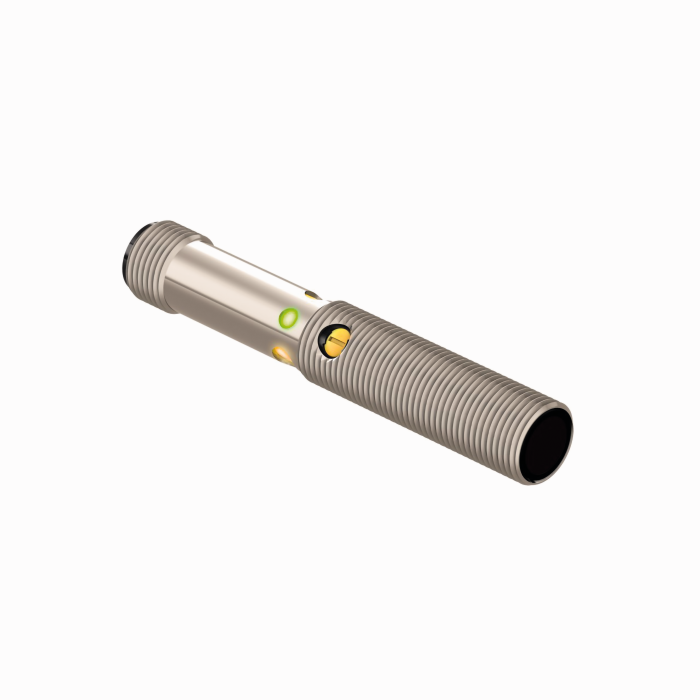

Product M12PDQ8
Photoelectric Sensor
Diffuse Mode Sensor
Order number: 3077179Alternative order number : 77179
- Male M12 × 1, 4-pin
- Protection classes IP67 / IP68
- Metal housing
- LED all-round visible
- Indication of insufficient excess gain
- Sensitivity adjustable via potentiometer
- Operating voltage: 10…30 VDC
- PNP switching output, complementary contact
General data
| EAN | 662488771799 |
| eCl@ss-Code (V5.1.4): | 27270903 -/- Diffuse mode sensor, energy-efficient |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 36 g |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
