Product SD50P300WKQP
LED Display
Matrix LED Display

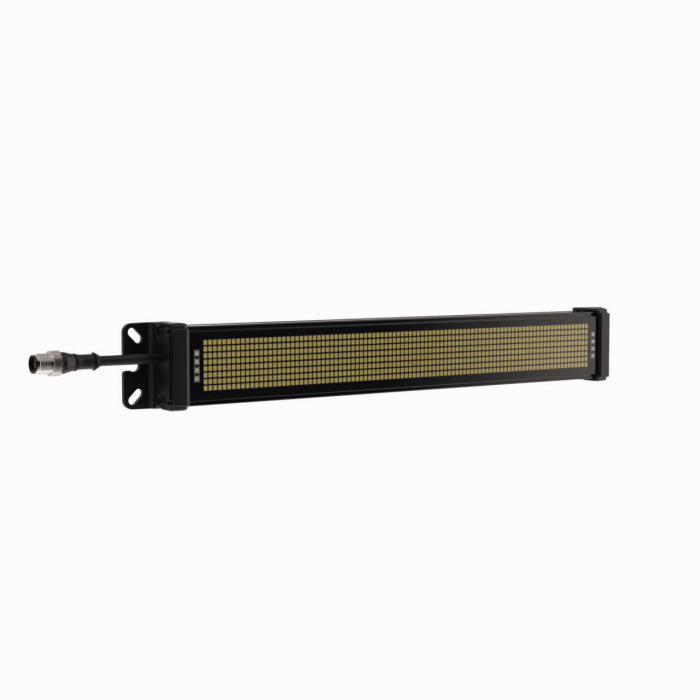

Order number: 3817045- Programmable alphanumeric matrix LED display, 8 × 96 pixels, white LEDs
- Status RGB LEDs
- A large number of texts via IO-Link process data
- Protection class IP65
- Operating voltage: 18…30 VDC
- Connection: 150-mm cable with male connector, M12 × 1, straight, 4-pin
- Parameterization via IO-Link
General data
| EAN | 662488449070 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85312020900 |
| Country of origin | US |
| Weight | 340 g |
Technical Data
| Design | Right-angled |
| Operating voltage | 18…30 VDC |
| Communication protocol | IO-Link |
| Electrical connection | Cable with connector, M12 |
| Cable length | 0.150 m |
| Housing material | Polycarbonate/ABS, Black |
| Ambient temperature | -20…+50 °C |
| Protection class | IP65 |
Mounting accessories
|
PT6R-1004-U1-H1141 | 6836194 |
|
WKC4T-0.6-RSC4T/TXG | 6629682 |
|
WSSD-WSSD-4414-10M | 6935585 |
|
MQDEC-403SS | 3047631 |
|
LTX900M-F10-LI0-X3-H1151 | 1540299 |
|
SLLCP23-1610P88 | 3089777 |
|
TL50BLGRWQ | 3088271 |
Connectivity accessories
|
RSC4.4T-15/TXG | 6634164 |
|
TI-BL20-E-EN-S-6
BL ident interface set |
7030632 |
|
LE550DC1 W/30 | 3095384 |
|
BSS-08
Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene |
6901322 |
|
FAS4-CSG43 | 6821322 |
