Product K50LGRYW4PQ
LED Signal Light
Beacon
Order number: 3085385Alternative order number : 85385
- All-round LED display
- Individually controllable
- Mechanical screw-in thread M30 x 1.5
- Protection classes IP67/IP69K
- Multicolor: Green (COL 1) / Red (COL 2) / Yellow (COL 3) / White (COL 4)
- Male M12x1
- Operating voltage 18…30 VDC
- Multifunctional
General data
| EAN | 662488853853 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 144 g |
Technical Data
| Construction size | 69 mm |
| Operating voltage | 18…30 VDC |
| Output function | NO contact, Potential-free |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PC, Black |
| Ambient temperature | -40…+50 °C |
| Protection class | IP67/IP69 |

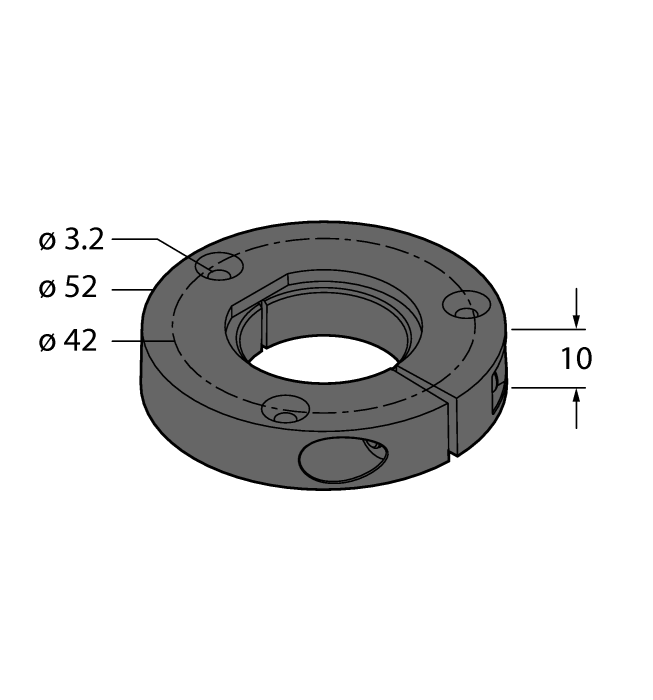

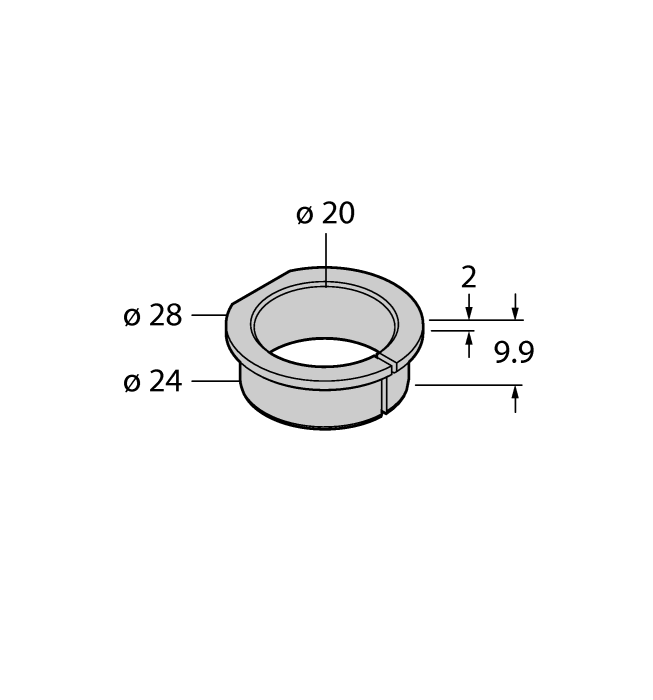

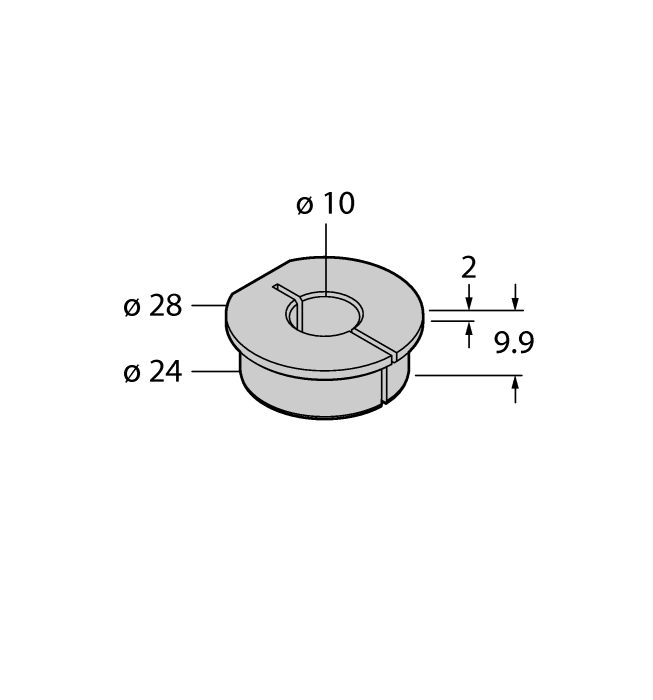

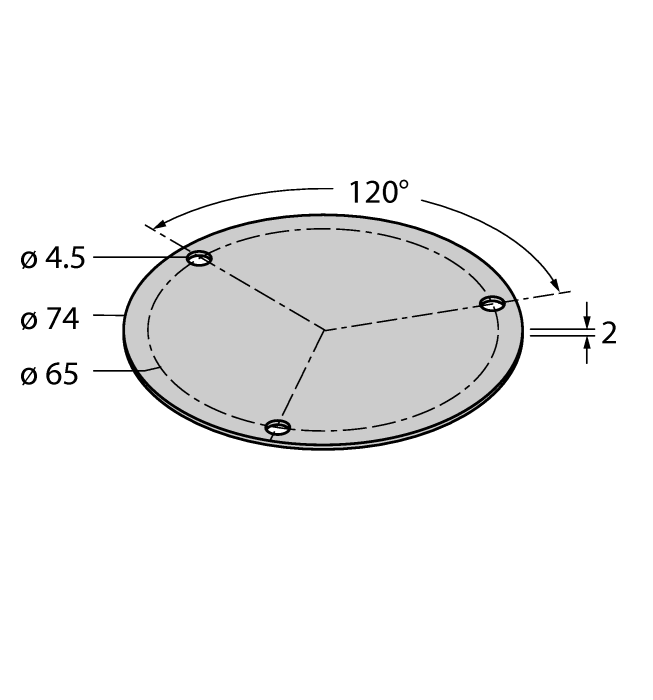

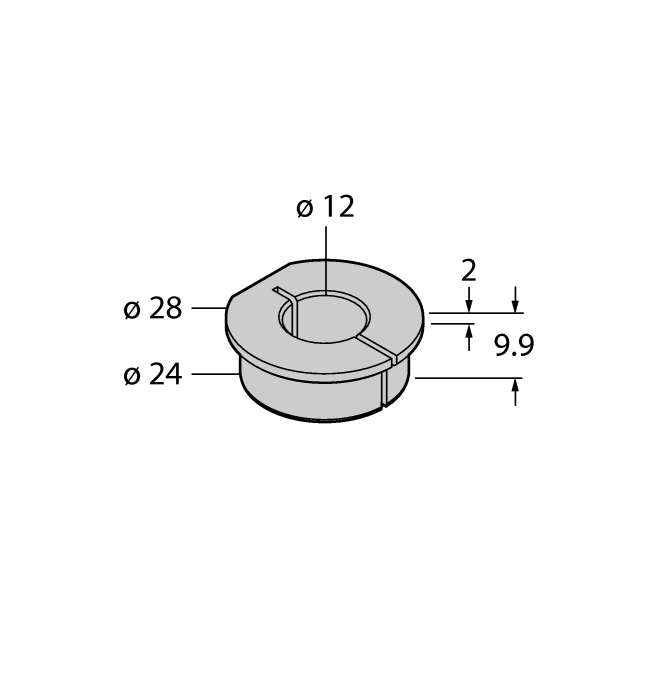

Mounting accessories
|
BI7-Q08-VP6X2-V1141
Rectangular, metal |
1600902 |
| INU.P.SAFETY-ISD_SSA_ILLUM_E_STOP.DE | 215157_DE | |
|
VIS02-S80E-2/TXL | 6606520 |
|
WKSV4.4T-2/TXL | 6631662 |
|
RKCV4T-0.6-RSCV4T/TFW | 6935405 |
|
EA5R600PUXMODQ | 3077541 |
Connectivity accessories
|
PPROCAM1.3SR-P | 3077047 |
|
FLTR635-27
Bandpass filter red, 27 mm diameter suitable for LCFxxLEVMP lenses |
3097530 |
