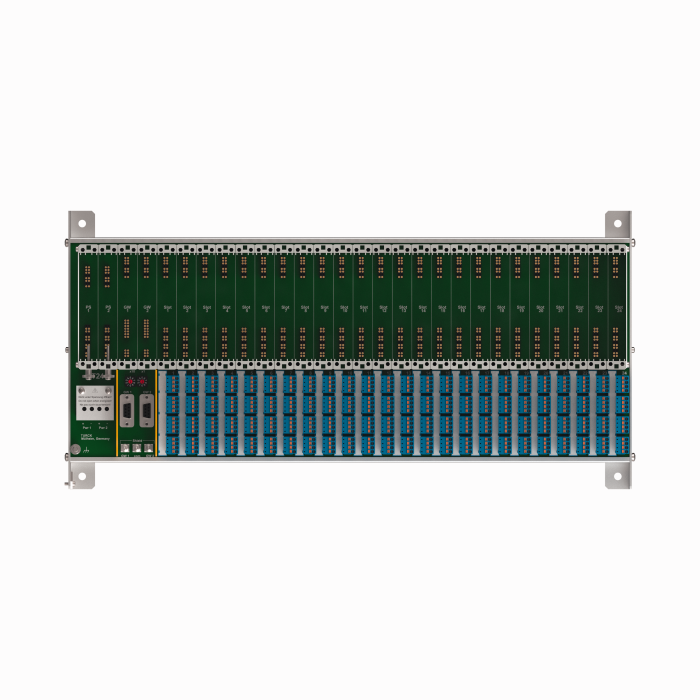

Product MT24-3G
excom I/O System
Module Rack for 24 Modules, Zone 2
Order number: 9100682- Module rack for max. 24 I/O modules, 2 gateways and 2 power supply modules
- The terminals for the signal connection level are available as accessories
General data
| EAN | 4047101268041 |
| eCl@ss-Code (V5.1.4): | 27250301 -/- Module rack (periphery) |
| Customs tariff number | 85381000000 |
| Country of origin | DE |
| Weight | 3221 g |
Technical Data

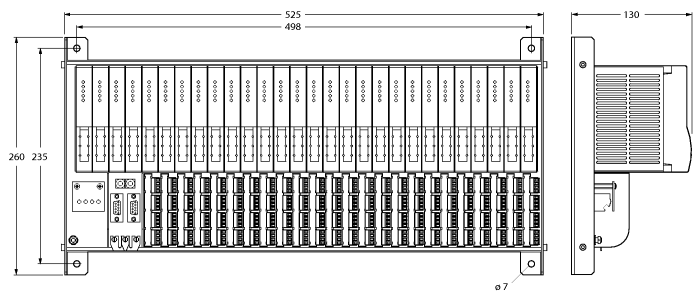

| Construction size | 260 x 525 x 130 mm |
| Electrical connection | 4 × 4 clamps per module |
| Housing material | Aluminium, extrusion profile |
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, cFM, cFMus, IECEx, CCC, INMETRO, KOSHA, EAC EX, UKCA, CE |
