Product NI25-CQP40/S1102 5M
Inductive Sensor
With Increased Temperature Range

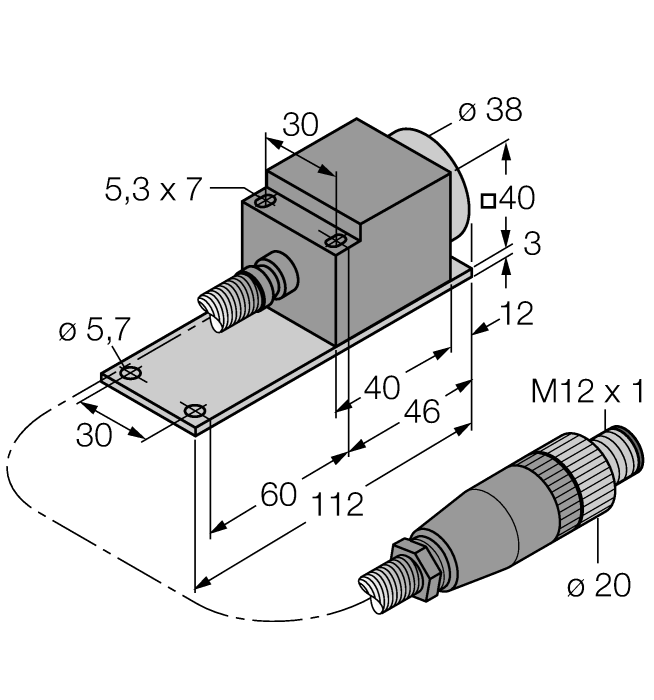

Order number: 1602409- Rectangular, height 40 mm
- Including. aluminium base plate for drill hole compatibility to the CP40 housing
- Sensor housing, Aluminium
- Plastic, PEEK
- Aluminium cable sheath
- For temperatures up to +250 °C
- Functions only with signal processor EM30‐AP6X2‐H1141/S1102
- Switchpoint adjusted at the processing unit
- 3‐wire connection to the processor
General data
| EAN | 4047101208405 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 795 g |
Technical Data
| Output function | NO contact, PNP |
| Electrical connection | Connector, M12 × 1 |
| Cable length | 5.0 m |
| Housing material | Plastic, AL |
| Ambient temperature | 0…+250 °C |
| Protection class | IP60 |
