Product MT08-3G
excom I/O System

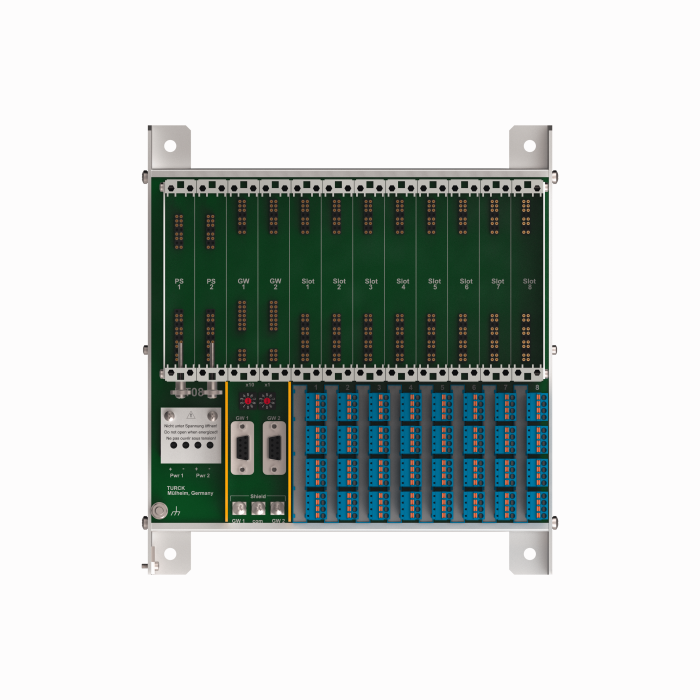

Module Rack for 8 Modules, Zone 2
Order number: 9100680- Module rack for max. 8 I/O modules, 2 gateways and 2 power supply modules
- The terminals for the signal connection level are available as accessories
General data
| EAN | 4047101296822 |
| eCl@ss-Code (V5.1.4): | 27250301 -/- Module rack (periphery) |
| Customs tariff number | 85381000000 |
| Country of origin | DE |
| Weight | 1577 g |
Technical Data
| Electrical connection | 4 × 4 clamps per module |
| Housing material | Aluminium, extrusion profile |
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, cFM, cFMus, IECEx, CCC, INMETRO, KOSHA, EAC EX, UKCA, CE |
Data Sheets
| German | 296 KB |
| English | 296 KB |
| French | 296 KB |
| Spanish | 295 KB |
| Czech | 194 KB |
| Dutch | 296 KB |
| Romanian | 296 KB |
| Russian | 454 KB |
| Polish | 297 KB |
| Chinese | 352 KB |
| Turkish | 280 KB |
Approval
| PTB 00 ATEX 2194 U | 2522 KB |
| IECEx PTB 13.0040 U | 471 KB |
| EC declaration of conformity | 132 KB |
| KOSHA 17-AV4BO-0110U | 690 KB |
| INMETRO — TÜV 13.1661 U | 5038 KB |
| FM21US0117X | 553 KB |
| FM21CA0084X | 548 KB |
| JPEX | 386 KB |
