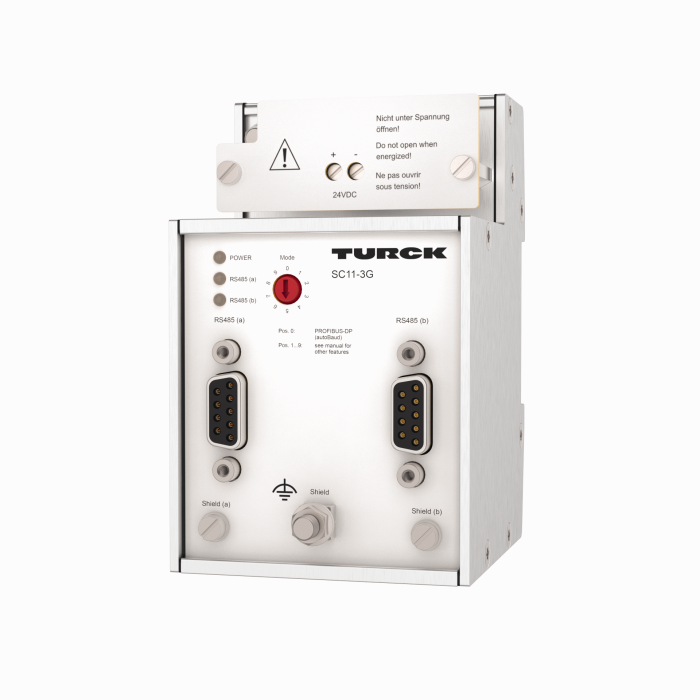

Product SC11-3G
excom I/O System
Repeater
Order number: 100000548- Repeater for PROFIBUS DP and Modbus RTU
- For connecting more than 32 PROFIBUS-DP slaves in a PROFIBUS network
- Segmentation and extension of PROFIBUS DP and Modbus RTU networks
Automatic baud rate detection
General data
| EAN | 4047101439724 |
| eCl@ss-Code (V5.1.4): | 27250312 -/- Communication interface, active |
| Customs tariff number | 85176200000 |
| Country of origin | DE |
| Weight | 665 g |
Technical Data
| Housing material | Anodized aluminium |
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, cFMus, cFM, IECEx, CCC, KOSHA, EAC EX, UKCA, CE |
Data Sheets
| German | 275 KB |
| English | 274 KB |
| French | 276 KB |
| Spanish | 275 KB |
| Czech | 275 KB |
| Dutch | 275 KB |
| Romanian | 275 KB |
| Russian | 985 KB |
| Polish | 276 KB |
| Chinese | 340 KB |
| Turkish | 326 KB |
Approval
Manual
Product Catalog
Product Overview
| Modular I/O Systems and Compact I/O Modules in IP20 and IP67 | 1559 KB |
| Products and Solutions for Efficient Automation | 2173 KB |
| excom I/O system | 6454 KB |
Quick Start Guide
Mounting accessories
|
REI-E-113T8S-2B2500-H1181 | 100011551 |
|
RSS8T-5/TEL | 6625453 |
|
PKG4M-1-PSW4M/TEL | 6625316 |
Connectivity accessories
|
TI-BL20-E-EN-S-6
BL ident interface set |
7030632 |
|
RSC4.4T-15/TXG | 6634164 |
